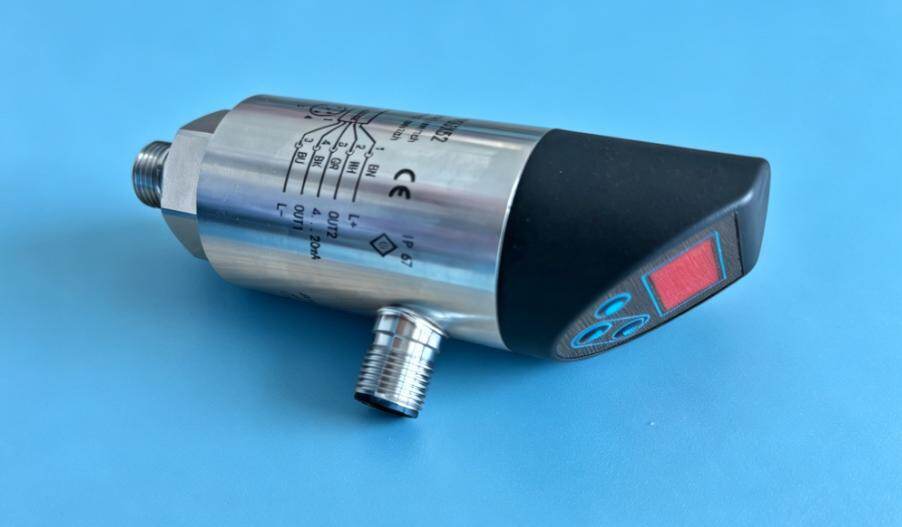

HPS Series Pressure Sensor with Display
Compact or digital display models available; 4~20mA + discrete output
Key Features
- Compact BPS (no display) or digital BPD (with display) available
- PT1000 High-Precision Temperature Sensor
- BPS=4~20mA; BPD=4~20mA+PNP/NPN+IO-Link
- 304 Stainless steel, corrosion-resistant
- G1/4"/G1/2" External Thread Interface
- For photovoltaic, semiconductor, and liquid cooling systems
Key Parameters
Type
Compact BPS / Digital Display BPD
Measurement element
PT1000 High Precision
Output Signal
BPS=4~20mA; BPD=4~20mA + PNP/NPN + IO-Link
Material
304 Stainless Steel
Detailed Technical Specifications
| Type | Compact BPS / Digital Display BPD |
| Measurement element | PT1000 High Precision |
| Output Signal | BPS=4~20mA; BPD=4~20mA + PNP/NPN + IO-Link |
| Material | 304 Stainless Steel |
| API | G1/4"-G1/2" external thread |
| Measurement Range | -1 bar to 600bar (optional; standard includes -1 bar range) |
| Measurement Accuracy | ±0.5%FS |
| Response Time | <10ms |
| Ingress Protection Rating | IP67 |
| Supply Voltage | 12-24V DC |
| Display Mode | BPD-type LCD digital display |
| Operating Temperature | -40℃ ~ +90℃ |
| Process Interface | G1/4 |
| Standard Model | Threaded Installation |
Application Scenarios
Photovoltaic Industry
Photovoltaic Equipment Temperature Monitoring
Semiconductor
Semiconductor Process Temperature Control
Liquid Cooling System
Liquid Cooling System Temperature Monitoring
Energy Storage System
Energy Storage Thermal Management System Temperature Monitoring
