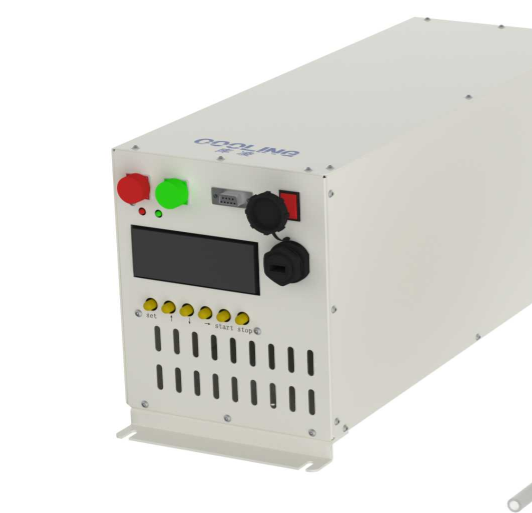

CL-STC007-C2A Semiconductor - Peltier Temperature Controller
Peltier Element Temperature Controller with Automatic Cooling/Heating Switching, Temperature Stability ±0.1°C
Key Features
- Peltier Element (Thermoelectric Device) Auto Switch Between Cooling and Heating
- PID control with temperature stability up to ±0.1°C
- RS485 communication mode, supports remote control
- Temperature Sensor Pt100Ω, 3-wire, Class A accuracy
- Multi-alarm function: high/low temperature limits, output off, remote on/off
- Advanced features such as sensor trimming, offset adjustment, and setpoint memory
Key Parameters
Model
CL-STC007-C2A
Communication Method
RS485
Control Method
Auto PID Control for Cooling/Heating Switching
Operating Temperature Range
10~60°C, no condensation
Detailed Technical Specifications
| Model | CL-STC007-C2A |
| Communication Method | RS485 |
| Control Mode | Automatic Cooling/Heating PID Control |
| Operating Temperature Range | 10~60°C, no condensation |
| Temperature Stability | ±0.1℃ |
| Temperature Sensor | Resistance thermometer Pt100Ω, 3-wire, Class A, 2mA |
| Key Features | Sensor trimming, offset, external sensor control, setpoint memory, temperature high/low alarm, output-off alarm, remote on/off |
| Dimensions (L*W*H) | 499*165*215mm |
| Ambient Temperature | 10~35℃ |
| Supply Current | 16A |
| Supply Voltage | Single-phase 180~242VAC 50/60Hz |
Application Scenarios
Semiconductor
Precision Temperature Control for Semiconductor Process Equipment
Photovoltaic Industry
Photovoltaic Wet Process Temperature Control System
Analytical Instruments
Laboratory Analytical Instrument Temperature Control
Industrial Temperature Control
Industrial Equipment Precision Temperature Control Application
