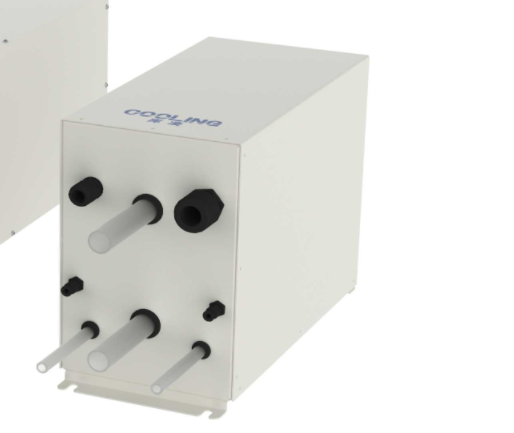

CL-STC007-HW13 Semiconductor - Heat Exchanger
Peltier element heat exchanger, cooling 750W / heating 1800W, PFA fluid loop
Key Features
- Peltier Element (Thermoelectric Device) Cooling and Heating Methods
- Cooling capacity 750W (water), heating capacity 1800W (water)
- PFA wetting material for highly corrosive circulating fluids
- Supports deionized water, hydrofluoric acid, and ammonia-peroxide solutions.
- Facility water cooling: high efficiency and energy saving
- Compact design: 330*150*220mm, easy to integrate
Key Parameters
Model
CL-STC007-HW13
Cooling Capacity (Water)
750W
Water Heating Capacity
1800W
Cooling and Heating Methods
Peltier element (thermoelectric device, thermoelectric module)
Detailed Technical Specifications
| Model | CL-STC007-HW13 |
| Cooling Capacity (Water) | 750W |
| Heating Capacity (Water) | 1800W |
| Cooling and Heating Methods | Peltier Element (Thermoelectric Device, Thermoelectric Module) |
| Operating Temperature Range | 10~60℃ |
| Circulating liquid wetting material | Please Find Attached |
| Available circulating liquid | Pure water, hydrofluoric acid, ammonium peroxide solution |
| Circulating liquid pipe size | 3/4"*5/8" |
| Circulating Liquid Working Pressure | 0~0.35 MPa |
| Facility water for wetting materials | FEP Stainless Steel 304, Stainless Steel 316 |
| Facility Water Temperature | 10~35°C, no condensation |
| Facility Water Pipe Size | In/Out: FEP3/8"*1/4" |
| Maximum working pressure for facility water supply | 0.5Mpa |
| Facility Water Flow | 5~10 L/min |
| Dimensions (L*W*H) | 330*150*220mm |
| Ambient Temperature | 10~35℃ |
Application Scenarios
Semiconductor
Thermal Exchange and Temperature Control for Semiconductor Process Equipment
Photovoltaic Industry
Thermal Management System for Photovoltaic Wet Processes
Chemical Industry
Heat exchange applications for corrosive media
Industrial Temperature Control
Industrial Equipment Bidirectional Cooling and Heating Temperature Control
