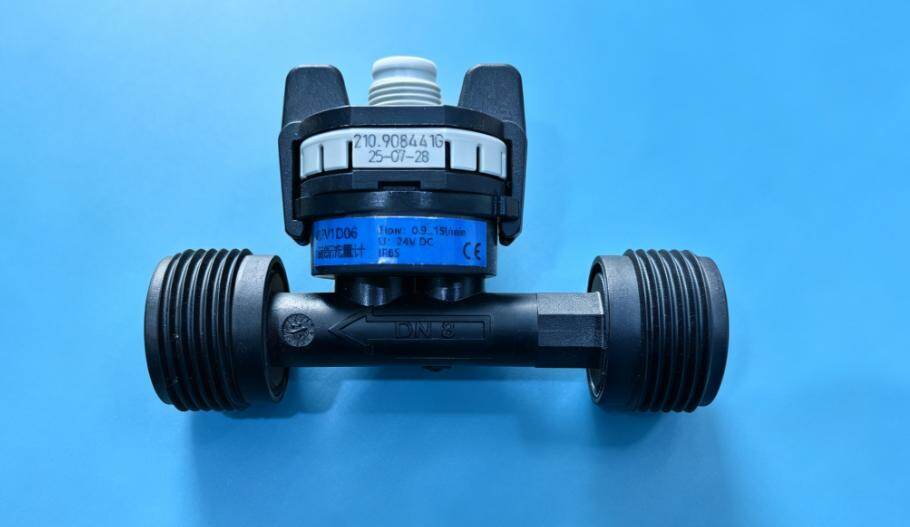

HPI-BFV1D06 Series Vortex Flow Sensor (Corrosion-Resistant, No Display)
Integrated flow and temperature detection with anti-corrosion design and no display
Key Features
- 4~20mA standard output signal
- Combined flow and temperature monitoring
- Flow range 0.9~15 L/min
- Pressure rating: 12 bar, G3/4" connection
- Suitable for water, ethylene glycol, and coolant
- Corrosion-resistant design for harsh environments
Key Parameters
Output Signal
4~2 mA
Feature Configuration
Combined Flow and Temperature Detection
Traffic range
0.9~15 L/min
Media Type
Water, ethylene glycol, coolant
Detailed Technical Specifications
| Output Signal | 4~2 mA |
| Feature Configuration | Integrated Flow and Temperature Detection |
| Traffic range | 0.9~15 L/min |
| Media Type | Water, ethylene glycol, coolant |
| Voltage Rating | 12 bar |
| Interface Specifications | G3/4 |
| Operating Temperature | 0~80℃ |
| Ingress Protection Rating | IP67 |
| Supply Voltage | 12-24V DC |
| Response Time | <500ms |
| Accuracy Class | ±1-±2% |
| Repeatability | / |
| Installation Method | Series Pipe Installation |
| Casing Material | PP Corrosion-Resistant Plastic |
| Cable Length | Standard: 5m; Customizable |
Application Scenarios
Liquid-cooled supercharging
Coolant flow monitoring for liquid-cooled ultra-fast charging system
Energy Storage System
Energy Storage Thermal Management System Flow Monitoring
EV charging station
Charging pile cooling system flow detection
Industrial Cooling
Industrial Cooling System Flow Monitoring
