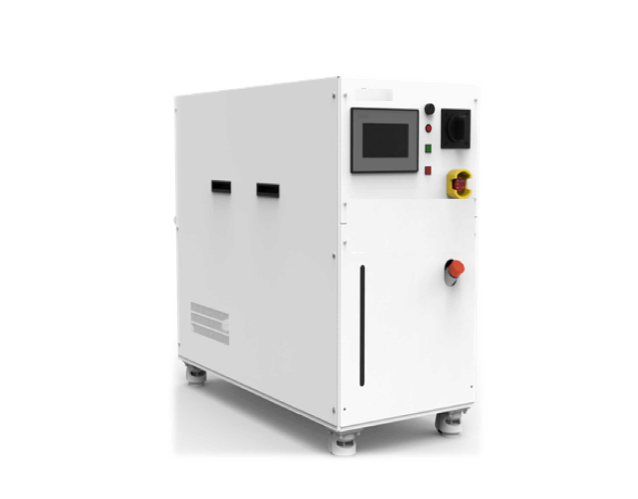

HTCF-01 Semiconductor - Temperature Controller
Compressor refrigeration thermostat, 10 kW cooling capacity, temperature stability ±0.1°C
Key Features
- Compressor cooling, 10kW powerful cooling capacity
- Temperature stability ±0.1°C with precision temperature control
- PID control method, automatic adjustment
- 40L/min@4bar High-Flow Pump
- RS232/485 communication interface with remote monitoring support
- Pure water circulating fluid, safe and eco-friendly
Key Parameters
Product Model
HTCF-01, HTCF-02
Temperature Range
17~27℃
Temperature Stability
±0.1℃
Cooling Capacity
10kW @ 20°C
Detailed Technical Specifications
| Product Model | HTCF-01, HTCF-02 |
| Temperature Range | 17~27℃ |
| Temperature Stability | ±0.1℃ |
| Cooling Capacity | 10kW @ 20°C |
| Heating Capacity | 5kW |
| Pump | 40L/min @4bar |
| circulating liquid | Pure Water |
| Temperature Control Method | PID Control |
| Cooling Method | Compressor refrigeration |
| Communication Interface | RS 232/485 |
| Power Supply | 3~208(380)±5%VAC 50Hz 25A |
| Product Dimensions | 800×400×160 mm |
| Product Weight | ≤300 kg |
Application Scenarios
Semiconductor
Large-Scale Temperature Control System for Semiconductor Process Equipment
Photovoltaic Industry
Large-Scale Temperature Control for Photovoltaic Wet Process Applications
Industrial Temperature Control
Industrial Equipment Large-Scale Cooling System
Test Equipment
Test Device Temperature Control Application
Need help selecting?
Our technical team will recommend the most suitable product model and configuration based on your specific use case.
