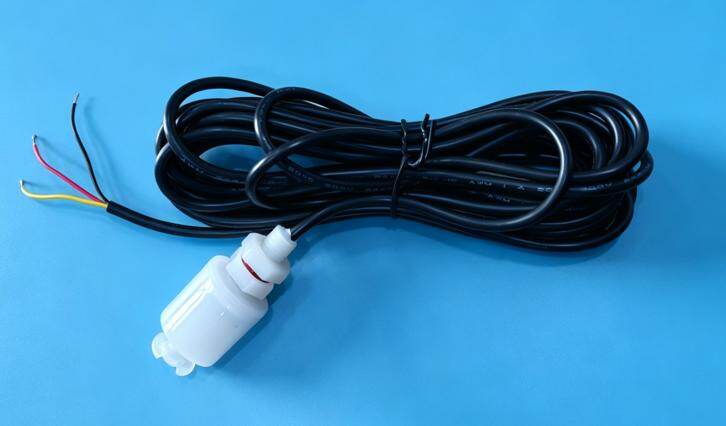

LFS Series Float Level Sensor
Single/dual level switch with optional integrated PT100/NTC temperature sensing
Key Features
- Single or dual level switch options available
- Optional integration of PT100/NTC temperature sensing
- Multiple Materials: PP/PVDF/PFA/Stainless Steel 304
- 2-wire/3-wire (NPN/PNP) output
- IP67 Protection Rating
- Universal for top or side mounting; threads customizable
Key Parameters
Type
Single/Dual level switch, with optional PT100/NTC temperature
Material Options
PP/PVDF/PFA/Stainless Steel 304 corrosion-resistant options available
Output Type
2-wire/3-wire (NPN/PNP)
Ingress Protection Rating
IP67
Detailed Technical Specifications
| Type | Single/dual level switch, with optional PT100/NTC temperature |
| Material Options | PP/PVDF/PFA/Stainless Steel 304 corrosion-resistant options available |
| Output Type | 2-wire/3-wire (NPN/PNP) |
| Ingress Protection Rating | IP67 |
| Installation Method | Universal for top or side mounting; threaded version customizable |
| Operating Temperature | -20~120℃ |
| Operating Voltage | 12-2 4V DC/AC |
| Contact Capacity | 24V DC/1A |
| Action Accuracy | ±1 mm |
| Response Time | <200ms |
| Float Material | PP/PVDF/PFA |
| Thread Specification | G1/2", NPT1/2", M20 – Customizable |
| Cable Length | Standard: 5m; Customizable |
| Voltage Range | 0-6bar |
| Service Life | ≥100 K |
Application Scenarios
Photovoltaic Wet Process
Level monitoring for photovoltaic wet processes
Semiconductor
Semiconductor Cleaning Equipment Liquid Level Control
Liquid Cooling System
Liquid Cooling System Level and Temperature Monitoring
Water Treatment
Water Treatment System Level Detection
Fine Chemicals
Fine Chemical Level Monitoring and Control
