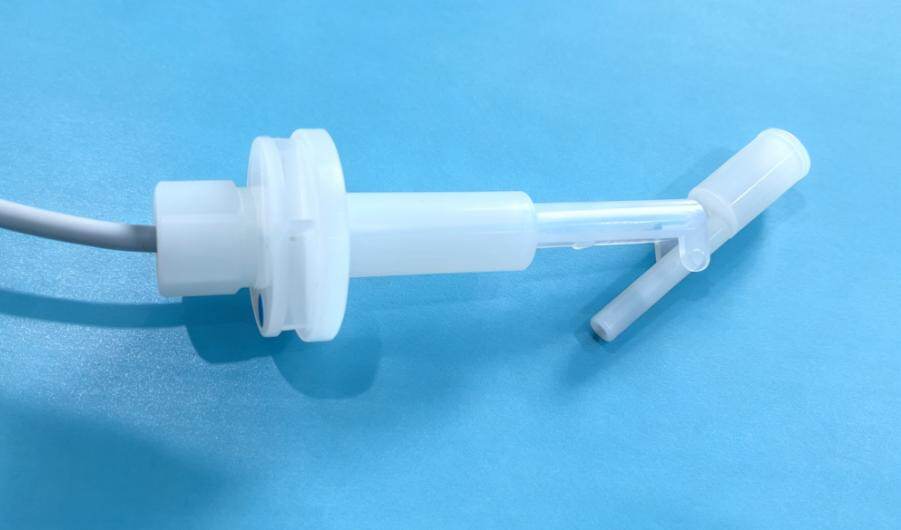

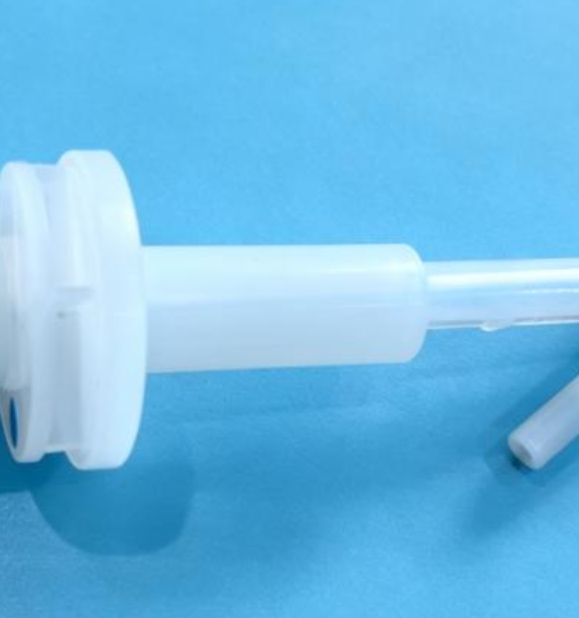

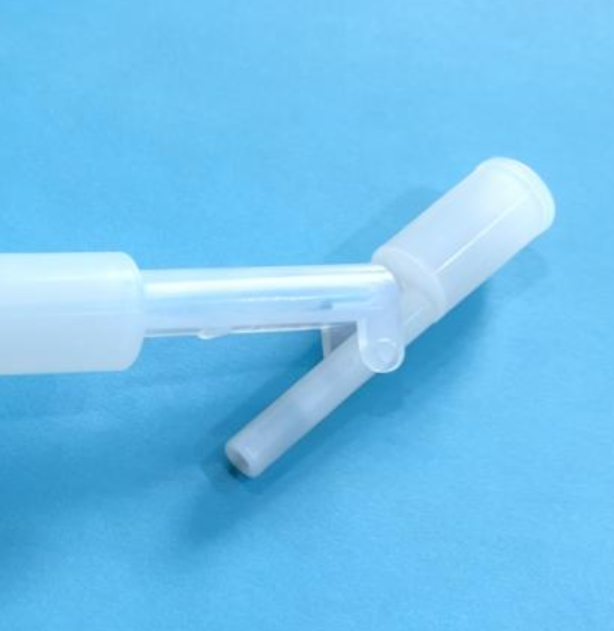

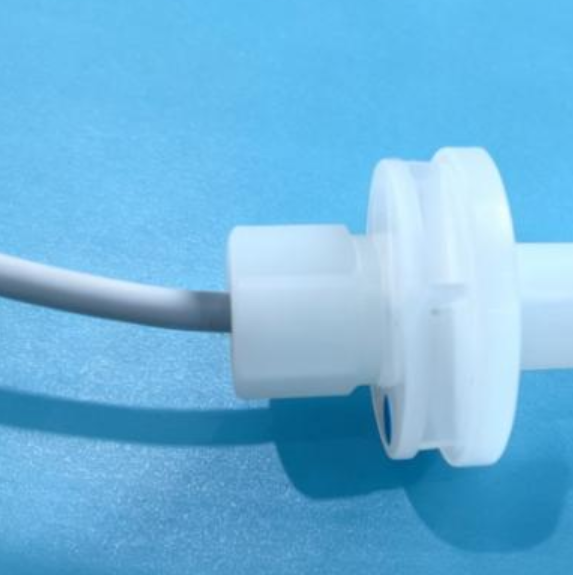

HP-PFAFQ Series PFA Horizontal Level Float
Compact design, PFA material, suitable for small corrosive solution tanks
Key Features
- Total length is only 117±3mm, compact design
- Two-wire passive contact output
- PFA Body with PVDF/PP Float, Corrosion Resistant
- IP68 rating with excellent waterproof performance
- 3/4 Horizontal live card loading for easy installation
- Operating temperature range: -20~85°C
Key Parameters
Total Length
117±3mm (including installation section)
Output Type
2-wire passive contact
Primary Material
Please Find Attached
Float material
PVDF/PP
Detailed Technical Specifications
| Total Length | 117 ± 3 mm (including installation section) |
| Output Type | 2-wire passive contact |
| Main Material | Please Find Attached |
| Float Material | PVDF/PP |
| Operating Temperature | -20℃~+85℃ |
| Ingress Protection Rating | IP68 |
| Installation Method | 3/4 Live Card Horizontal Load |
| Contact Capacity | 24V DC/0.5A |
| Action Accuracy | / |
| Response Time | <100ms |
| Service Life | ≥50 K |
| Voltage Range | 0-3bar |
| Cable Length | Standard 3m, customizable |
| Thread Specification | 3/4 NPT |
Application Scenarios
Small liquid reservoir
Small Corrosive Chemical Tank Level Control
Cleaning Equipment
Liquid Level Monitoring for Semiconductor and Photovoltaic Cleaning Equipment
Laboratory
Lab Small-Container Liquid Level Monitoring
Analytical Instruments
Online Analyzer Liquid Level Detection
