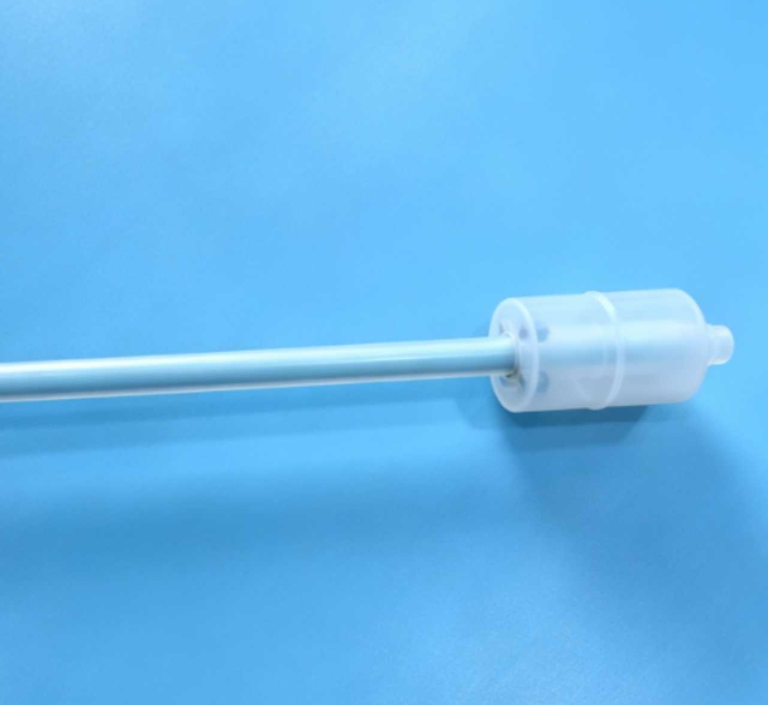

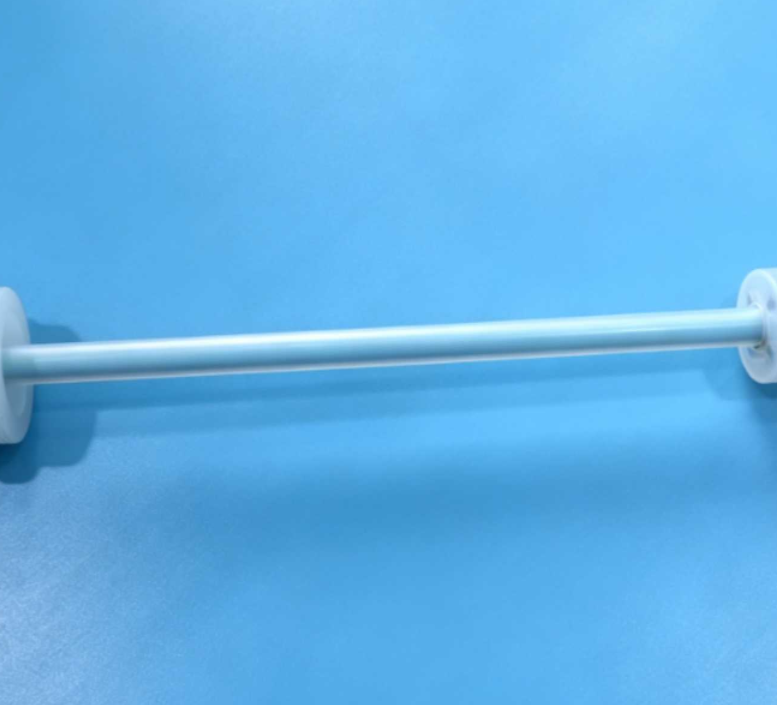

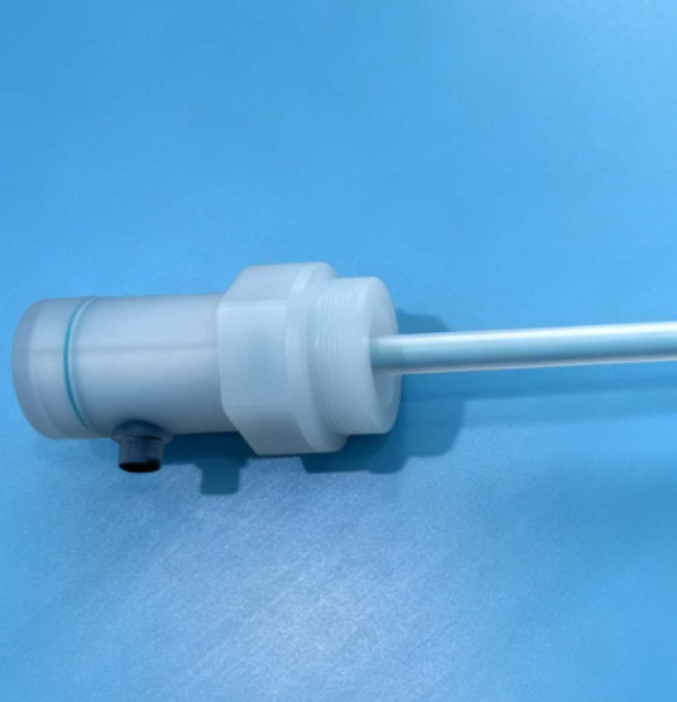

HPI-M (A)-PFA Series PFA Magnetostrictive Level Transmitter
Ultra-high precision ±0.5mm with full PFA anti-corrosion design
Key Features
- Ultra-high measurement accuracy: ±0.5mm, nonlinearity <±0.05% FS
- All-PFA wetted materials with superior corrosion resistance
- Supports 4-20mA/RS485 dual output
- Range: 50~20000 mm; rigid or flexible options available
- For high-purity and highly corrosive chemical solutions
- Long-term stability with maintenance-free design
Key Parameters
Measurement Accuracy
±0.5mm, nonlinearity < ±0.05% FS
Wetted Materials
Full PFA High Corrosion Resistance
Output Signal
4-20mA / RS485
Measurement Range
50~2000 mm
Detailed Technical Specifications
| Measurement Accuracy | ±0.5mm, nonlinearity < ±0.05% FS |
| Wetted Materials | Fully PFA, highly corrosion-resistant |
| Output Signal | 4-20mA / RS485 |
| Measurement Range | 50~2000 mm |
| Probe Type | Rigid or Flexible |
| Operating Temperature | -40~150℃ |
| Medium Temperature | -40~150℃ |
| Ingress Protection Rating | IP67 |
| Supply Voltage | 12-36V DC |
| Response Time | <10ms |
| Resolution | 0.01mm |
| Repeatability | ±0.01% FS |
| Installation Method | Flange/Threaded Installation |
| Explosion-proof rating | Optional: Ex d IIC T6 |
Application Scenarios
Semiconductor
Precision Liquid Level Measurement for Semiconductor High-Purity Chemicals
Photovoltaic Industry
Photovoltaic High-Purity/Etching Chemical Level Monitoring
Fine Chemicals
Level Measurement of Corrosive Media in Fine Chemicals
Water Treatment
Ultra-pure Water System Level Monitoring
