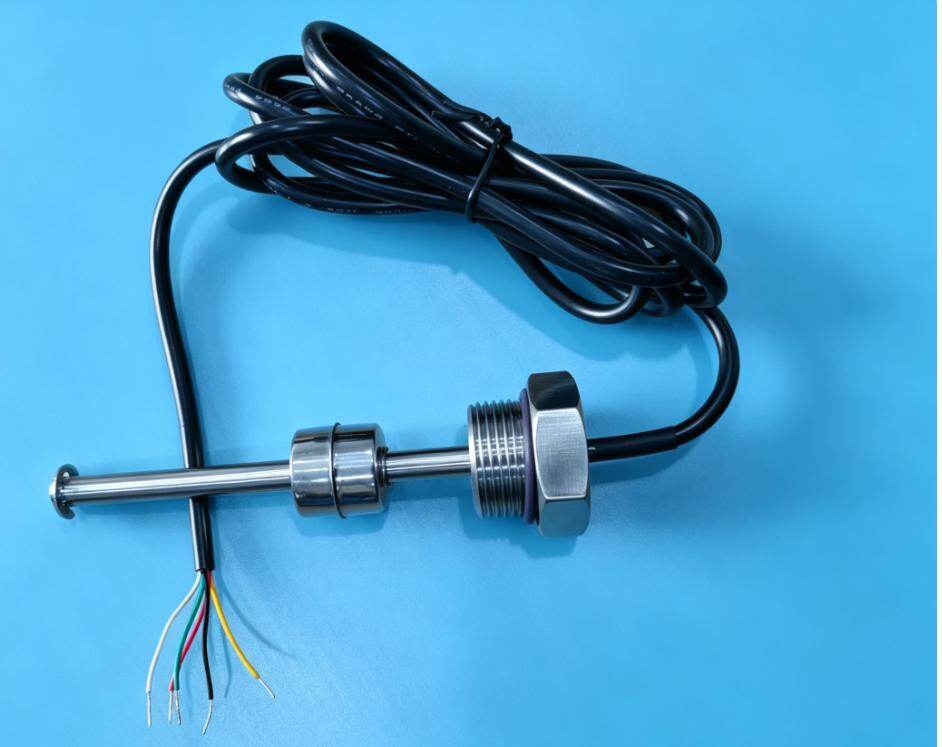

Stainless Steel Temperature Series Dual-Level & Temperature Integrated Sensor
Dual-point level + NTC/Pt100 temperature integrated sensor: Ideal for PV wet processes and cooling systems
Key Features
- Integrated dual-point level detection and NTC/Pt100 temperature sensing design
- Liquid level accuracy up to ±1mm; temperature accuracy ±1°C
- SUS304/316L/PVDF: Multiple material options available for various media.
- IP68 rating with excellent waterproof performance
- Digital and analog output with high compatibility
- Easy to install with low maintenance costs
Key Parameters
Feature Configuration
Dual-Level + NTC/Pt100 Temperature Sensor | Dual Level+NTC/Pt100 Temperature
Level Accuracy
±1 mm
Temperature Accuracy
±1℃
Primary Material
SUS304/316L/PVDF Optional
Detailed Technical Specifications
| Feature Configuration | Dual-Level + NTC/Pt100 Temperature Sensor | Dual Level+NTC/Pt100 Temperature |
| Level Accuracy | ±1 mm |
| Temperature Accuracy | ±1℃ |
| Main Material | SUS304/316L/PVDF Optional | SUS304/316L/PVDF Available |
| Ingress Protection Rating | IP68 |
| Output Signal | Digital + Analog |
| Operating Temperature | -20~80℃ |
| Medium Temperature | -20~80℃ |
| Supply Voltage | 12-24V DC |
| Standard Model | Top-mount or side-mount options available |
| Thread Specification | Customizable |
| Output Port | / |
| Voltage Range | 0-6bar |
| Response Time | <500ms |
| Service Life | ≥100 K |
Application Scenarios
Photovoltaic Wet Process
Monitoring chemical solution levels and temperatures during photovoltaic texturing and etching processes
Cooling System
Dual Monitoring of Level and Temperature in Industrial Cooling Systems
Water Treatment
Water Treatment System Level Control and Temperature Monitoring
Liquid-cooled energy storage
Monitoring of coolant level and temperature in energy storage liquid cooling systems
