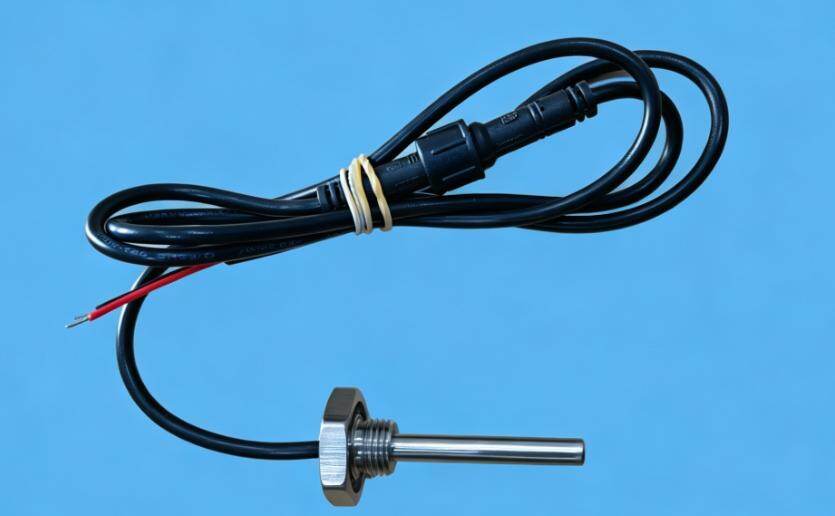

HPI-NTC-G14 Series NTC temperature sensor probe
G1/4 threaded mount, NTC thermistor, high-precision temperature sensing
Key Features
- Compact BPS (no display) or digital BPD (with display) available
- PT1000 Sensor, Class A, Accuracy ±0.3°C
- G1/4 Threaded Mount
- SUS304/316L/PVDF, optional housing
- Response time T0.5=1s/T0.9=3s
- -40~90°C wide-temperature operation
Key Parameters
temperature sensing element
NTC thermistor
Measurement Accuracy
±0.5℃
Installation Method
G1/4 Thread
Housing Material
SUS304/316L/PVDF (Optional)
Detailed Technical Specifications
| temperature sensor | NTC thermistor |
| Measurement Accuracy | ±0.5℃ |
| Installation Method | G1/4 Thread |
| Casing Material | SUS304/316L/PVDF, Optional |
| Response time | <5s |
| Operating Temperature | -40℃~+125℃ |
| Ingress Protection Rating | IP67 |
| Output Signal | Resistance Signal |
| Supply Voltage | No power required |
| Probe Length | Standard: 50mm, customizable |
| Output Port | Standard: 2m, customizable |
| Thread Specification | G1/4 |
| Voltage Range | 0-10 bar |
| Compatible Media | Water, ethylene glycol, coolant |
Application Scenarios
liquid cooling lines
Liquid cooling system piping temperature monitoring
Energy Storage System
Energy Storage Thermal Management System Temperature Detection
EV charging station
Charging Cabinet Cooling System Temperature Monitoring
Industrial Temperature Control
Industrial Equipment Temperature Monitoring and Control
Need help selecting?
Our technical team will recommend the most suitable product model and configuration based on your specific use case.
