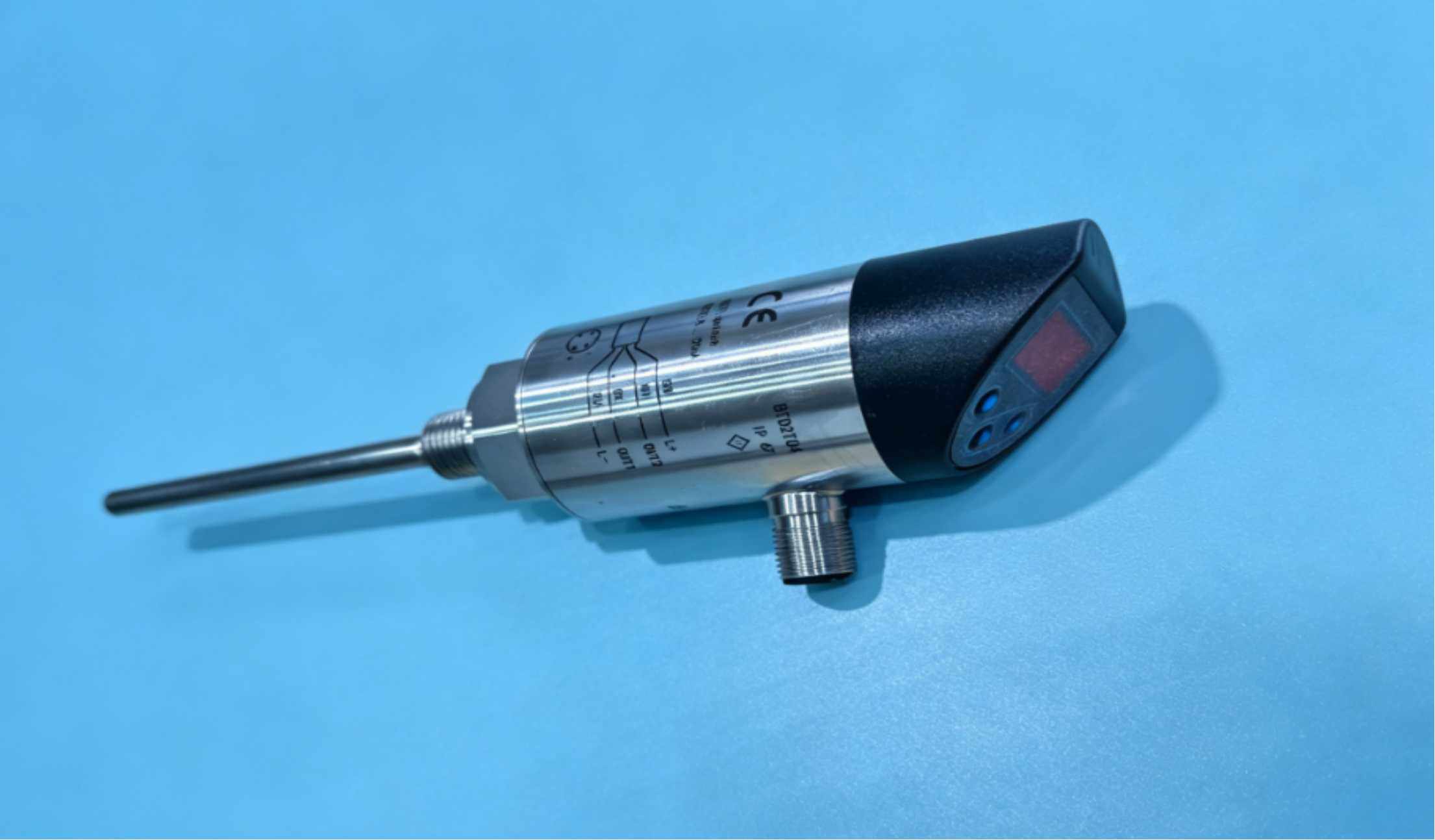

TPS Series Temperature Sensor
NTC thermistor, G1/4 threaded mount, high-precision temperature sensing
Key Features
- Compact BPS (no display) or digital BPD (with display) available
- Measurement accuracy: ±0.3°C
- G1/4 Threaded Mount
- SUS304/316L/PVDF, optional housing
- Response time <3s
- -40~90°C wide-temperature operation
Key Parameters
temperature sensing element
PT1000, Grade A
Measurement Accuracy
±0.3℃
Standard Model
G1/4 Thread, G1/2 External Thread
Housing Material
SUS304
Detailed Technical Specifications
| temperature sensor | PT1000, Grade A |
| Measurement Accuracy | ±0.3℃ |
| Standard Model | G1/4 Thread, G1/2 External Thread |
| Casing Material | SUS304 |
| Response time | T0.5=1s/T0.9=3s |
| Operating Temperature | -40℃~+90℃ |
| Ingress Protection Rating | IP65 |
| Output Signal | BTD: 4~20 mA + PNP/NPN + IO-Link |
| Supply Voltage | 10-3 VDC |
| Probe Diameter | 6mm |
| Output Interface | -25°C-80°C |
| Process Interface | G1/4 Male Thread, G1/2 Male Thread |
| Measurement Range | -50°C-150°C |
| Reverse Polarity Protection | Yes |
Application Scenarios
liquid cooling lines
Liquid cooling system piping temperature monitoring
Energy Storage System
Energy Storage Thermal Management System Temperature Detection
EV charging station
Charging Cabinet Cooling System Temperature Monitoring
Industrial Temperature Control
Industrial Equipment Temperature Monitoring and Control
